Trident Metal Industries stocks and supplies Elbows, Tees, Reducers, Caps, Couplings and Crosses in Stainless Steel, Duplex, Super Duplex and High-Nickel Alloys, backed by complete mill test certificates.

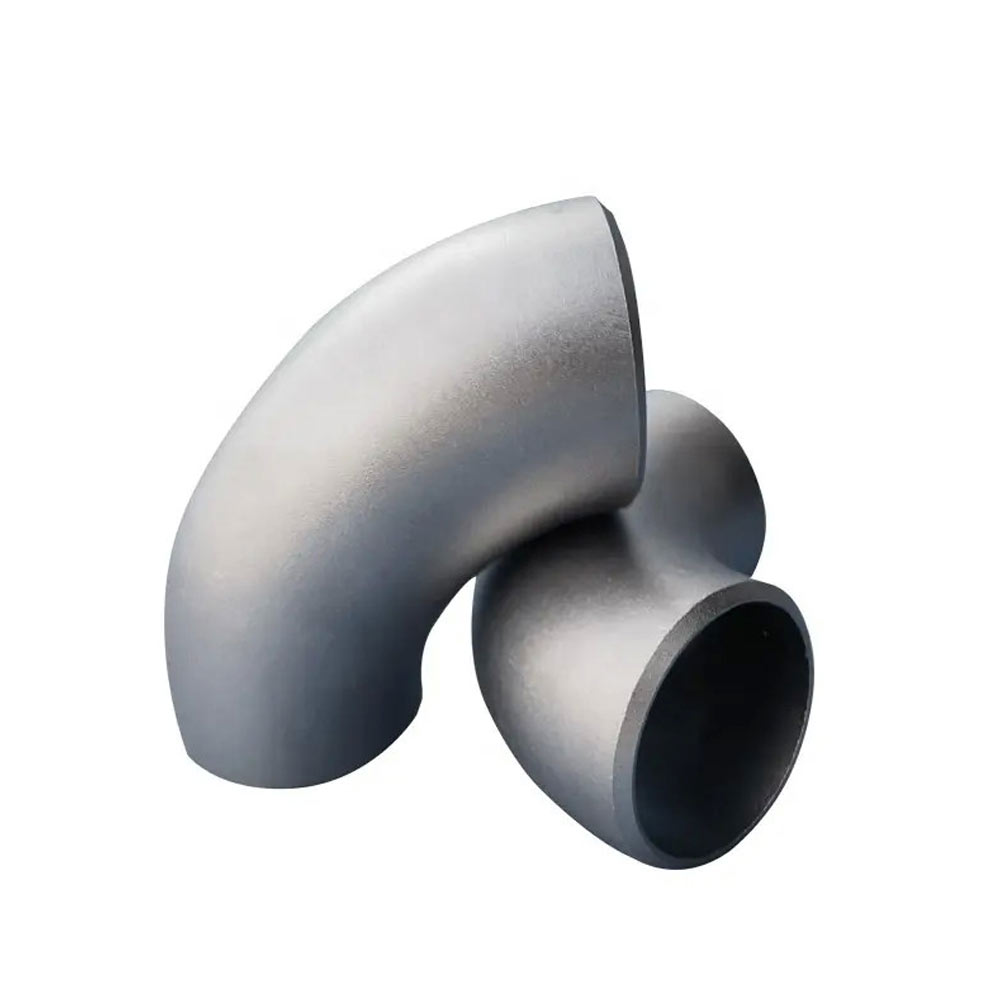

Butt-weld fittings manufactured in 90° and 45° configurations, Long Radius and Short Radius, used to change the direction of flow while minimizing pressure drop.
| Size | OD (mm) | Center to End (mm) |
|---|---|---|
| 1/2" | 21.3 | 38 |
| 3/4" | 26.7 | 38 |
| 1" | 33.4 | 38 |
| 2" | 60.3 | 76 |
| 3" | 88.9 | 114 |
| 4" | 114.3 | 152 |

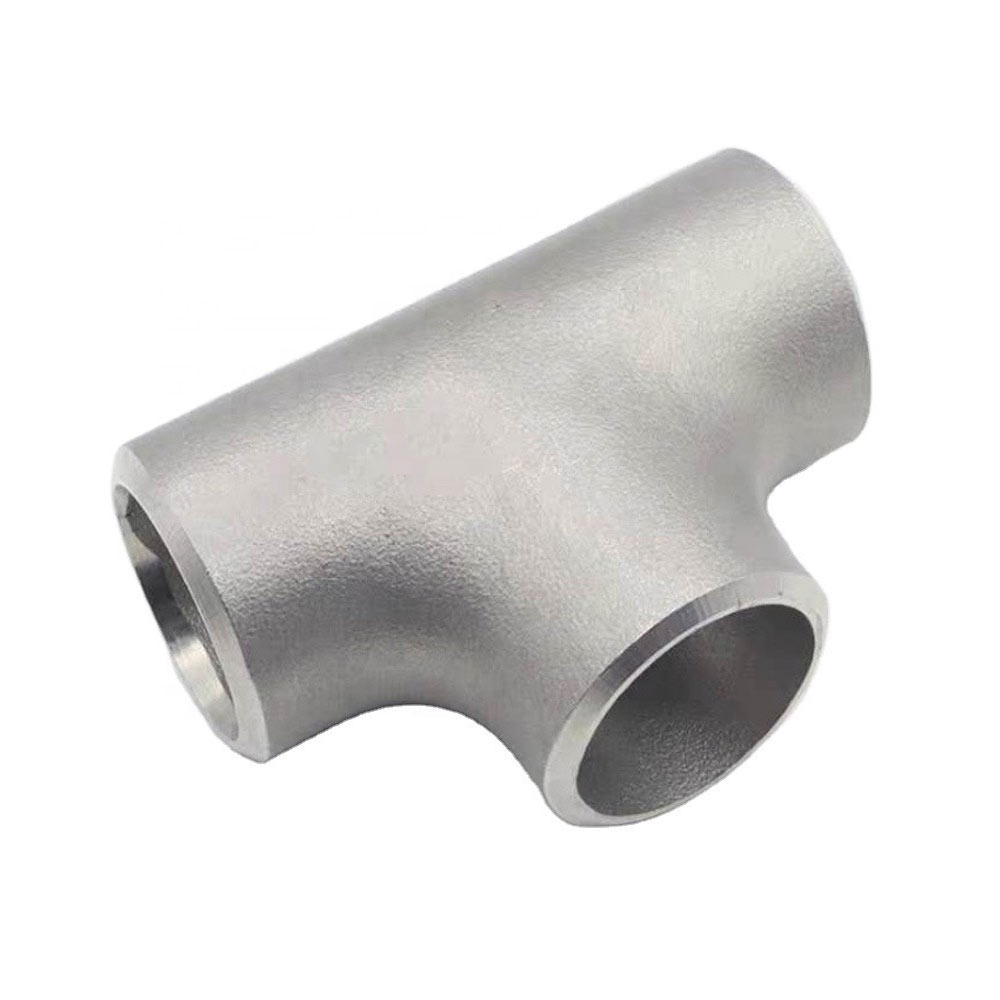

Butt-weld fittings used to create a branch connection from a main pipeline, supplied as Equal Tees for same-size branches and Reducing Tees for smaller branch outlets.
| Grade | UNS No. | ASTM Standard |
|---|---|---|
| 304/304L | S30400/S30403 | ASTM A182 |
| 316/316L | S31600/S31603 | ASTM A182 |
| Duplex 2205 | S32205 | ASTM A182 |
| Super Duplex 2507 | S32750 | ASTM A182 |

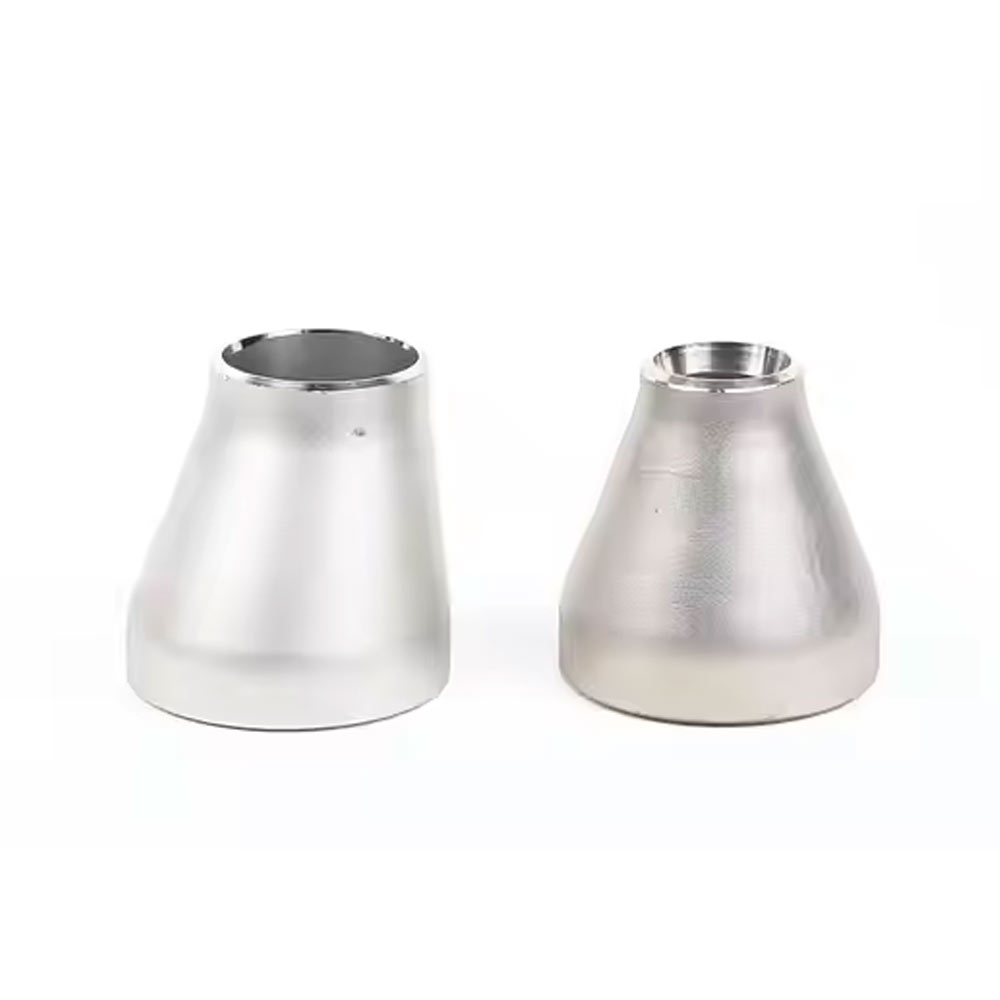

Fittings used to join two pipes of different diameters, available as Concentric Reducers on a common centerline and Eccentric Reducers with an offset for level support.
| Grade | UNS No. | ASTM Standard |
|---|---|---|
| 304/304L | S30400/S30403 | ASTM A182 |
| 316/316L | S31600/S31603 | ASTM A182 |
| Duplex 2205 | S32205 | ASTM A182 |
| Super Duplex 2507 | S32750 | ASTM A182 |

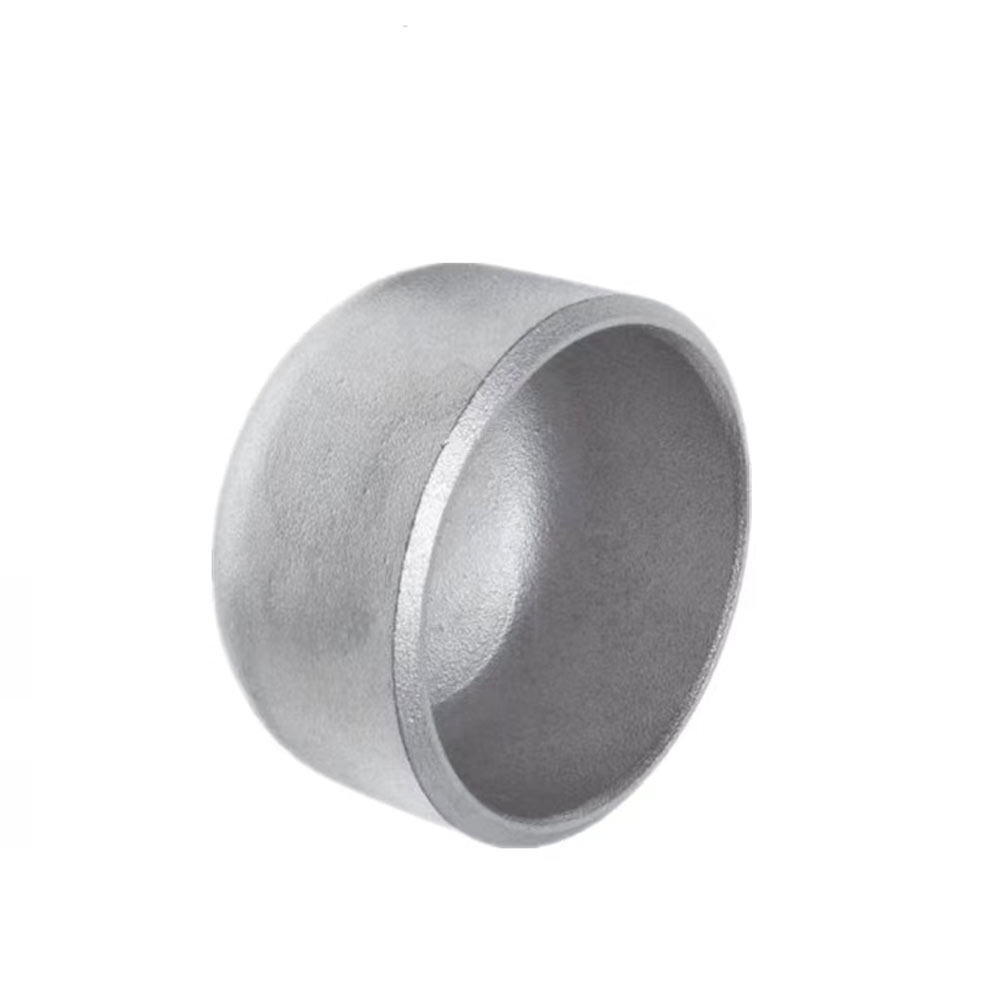

Dome-shaped butt-weld end closures used to seal the open end of a pipe run, providing a smooth, code-compliant termination for future extension or testing.
| Grade | UNS No. | ASTM Standard |
|---|---|---|
| 304/304L | S30400/S30403 | ASTM A182 |
| 316/316L | S31600/S31603 | ASTM A182 |
| Duplex 2205 | S32205 | ASTM A182 |
| Super Duplex 2507 | S32750 | ASTM A182 |

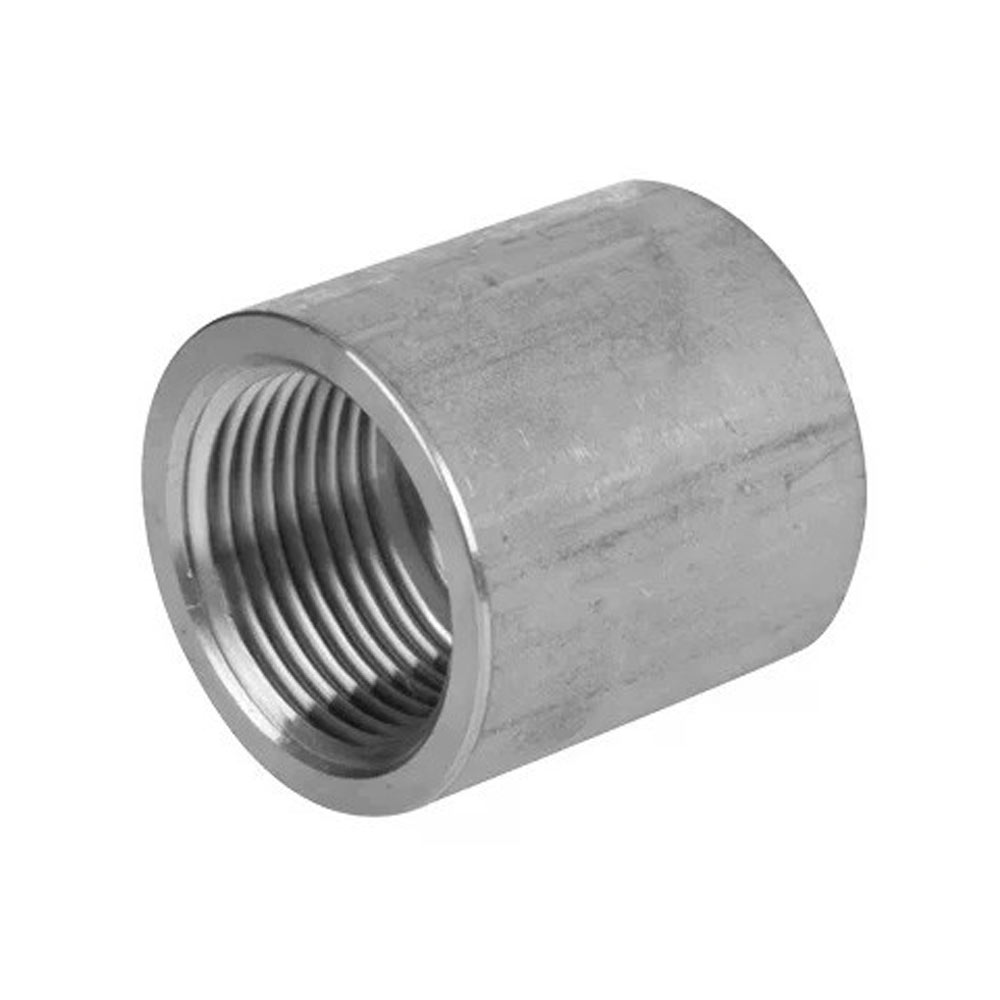

Socket weld and threaded fittings used to join two lengths of pipe of the same diameter in-line, supplied as Full and Half Couplings for branch connections.
| Grade | UNS No. | ASTM Standard |
|---|---|---|
| 304/304L | S30400/S30403 | ASTM A182 |
| 316/316L | S31600/S31603 | ASTM A182 |
| Duplex 2205 | S32205 | ASTM A182 |
| Super Duplex 2507 | S32750 | ASTM A182 |

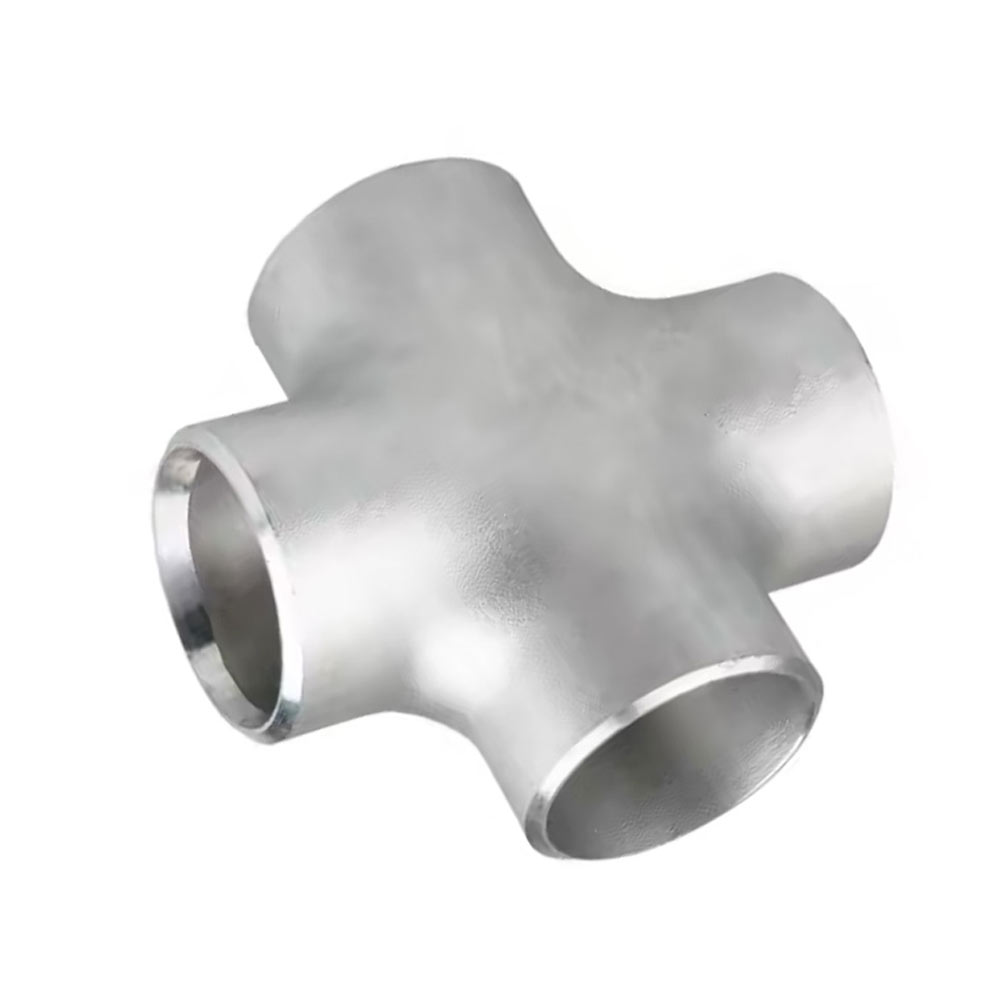

Four-way butt-weld fittings used where a pipeline must branch in two opposite directions from a single point, commonly used in fire protection and header piping.
| Grade | UNS No. | ASTM Standard |
|---|---|---|
| 304/304L | S30400/S30403 | ASTM A182 |
| 316/316L | S31600/S31603 | ASTM A182 |
| Duplex 2205 | S32205 | ASTM A182 |
| Super Duplex 2507 | S32750 | ASTM A182 |
Refer to the 3D drawing and standard dimensions table below before placing your order.
Note: Standard 3D reference diagram for Fitting Center-to-End Dimensions.
| NPS (Size) | Outer Dia (mm) | 90° Elbow (Center-to-End) | 45° Elbow (Center-to-End) | Tee (Center-to-End) |
|---|---|---|---|---|
| 1/2" | 21.3 | 38 | 16 | 25 |
| 3/4" | 26.7 | 38 | 19 | 29 |
| 1" | 33.4 | 38 | 22 | 38 |
| 1 1/2" | 48.3 | 57 | 29 | 57 |
| 2" | 60.3 | 76 | 35 | 64 |
| 3" | 88.9 | 114 | 51 | 86 |
| 4" | 114.3 | 152 | 64 | 105 |
| 6" | 168.3 | 229 | 95 | 143 |
| 8" | 219.1 | 305 | 127 | 178 |
| 10" | 273.0 | 381 | 159 | 216 |
Standard chemical composition and mechanical property ranges for the stainless and duplex grades used across our fitting range, as per ASTM/ASME specifications.
| Element | Composition (wt %) |
|---|---|
| Carbon (C) | 0.08 max (304) / 0.030 max (304L) |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Phosphorus (P) | 0.045 max |
| Sulphur (S) | 0.030 max |
| Chromium (Cr) | 18.00 – 20.00 |
| Nickel (Ni) | 8.00 – 10.50 (304) / 8.00 – 12.00 (304L) |
| Nitrogen (N) | 0.10 max |
| Property | Typical Value |
|---|---|
| Tensile Strength | 515 MPa min (304) / 485 MPa min (304L) |
| Yield Strength (0.2% Proof) | 205 MPa min (304) / 170 MPa min (304L) |
| Elongation at Break | 35% min |
| Hardness | ≤ 201 HB / 92 HRB |
| Element | Composition (wt %) |
|---|---|
| Carbon (C) | 0.08 max (316) / 0.030 max (316L) |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 0.75 max |
| Phosphorus (P) | 0.045 max |
| Sulphur (S) | 0.030 max |
| Chromium (Cr) | 16.00 – 18.00 |
| Nickel (Ni) | 10.00 – 14.00 |
| Molybdenum (Mo) | 2.00 – 3.00 |
| Nitrogen (N) | 0.10 max |
| Property | Typical Value |
|---|---|
| Tensile Strength | 515 MPa min (316) / 485 MPa min (316L) |
| Yield Strength (0.2% Proof) | 205 MPa min (316) / 170 MPa min (316L) |
| Elongation at Break | 35% min (40% for 316L) |
| Hardness | ≤ 217 HB / 95 HRB |
| Element | Composition (wt %) |
|---|---|
| Carbon (C) | 0.030 max |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Phosphorus (P) | 0.030 max |
| Sulphur (S) | 0.020 max |
| Chromium (Cr) | 22.0 – 23.0 |
| Nickel (Ni) | 4.5 – 6.5 |
| Molybdenum (Mo) | 3.0 – 3.5 |
| Nitrogen (N) | 0.14 – 0.20 |
| Property | Typical Value |
|---|---|
| Tensile Strength | 620 MPa min |
| Yield Strength (0.2% Proof) | 450 MPa min |
| Elongation at Break | 25% min |
| Hardness | ≤ 293 HB / 30 HRC |
| Element | Composition (wt %) |
|---|---|
| Carbon (C) | 0.030 max |
| Manganese (Mn) | 1.20 max |
| Silicon (Si) | 0.80 max |
| Phosphorus (P) | 0.035 max |
| Sulphur (S) | 0.020 max |
| Chromium (Cr) | 24.0 – 26.0 |
| Nickel (Ni) | 6.0 – 8.0 |
| Molybdenum (Mo) | 3.0 – 5.0 |
| Nitrogen (N) | 0.24 – 0.32 |
| Property | Typical Value |
|---|---|
| Tensile Strength | 795 MPa min |
| Yield Strength (0.2% Proof) | 550 MPa min |
| Elongation at Break | 15% min |
| Hardness | ≤ 310 HB / 32 HRC |
Send us the product, grade, size and quantity — we will come back with availability, pricing and a despatch date.
